Product Details
＋
Features
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Cast steel safety latches are secured with Allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
- This product complies with ANSI / ASME B30.21 and HST-3 standards
- Load tested to 125% of capacity with certificate
What's in The Box

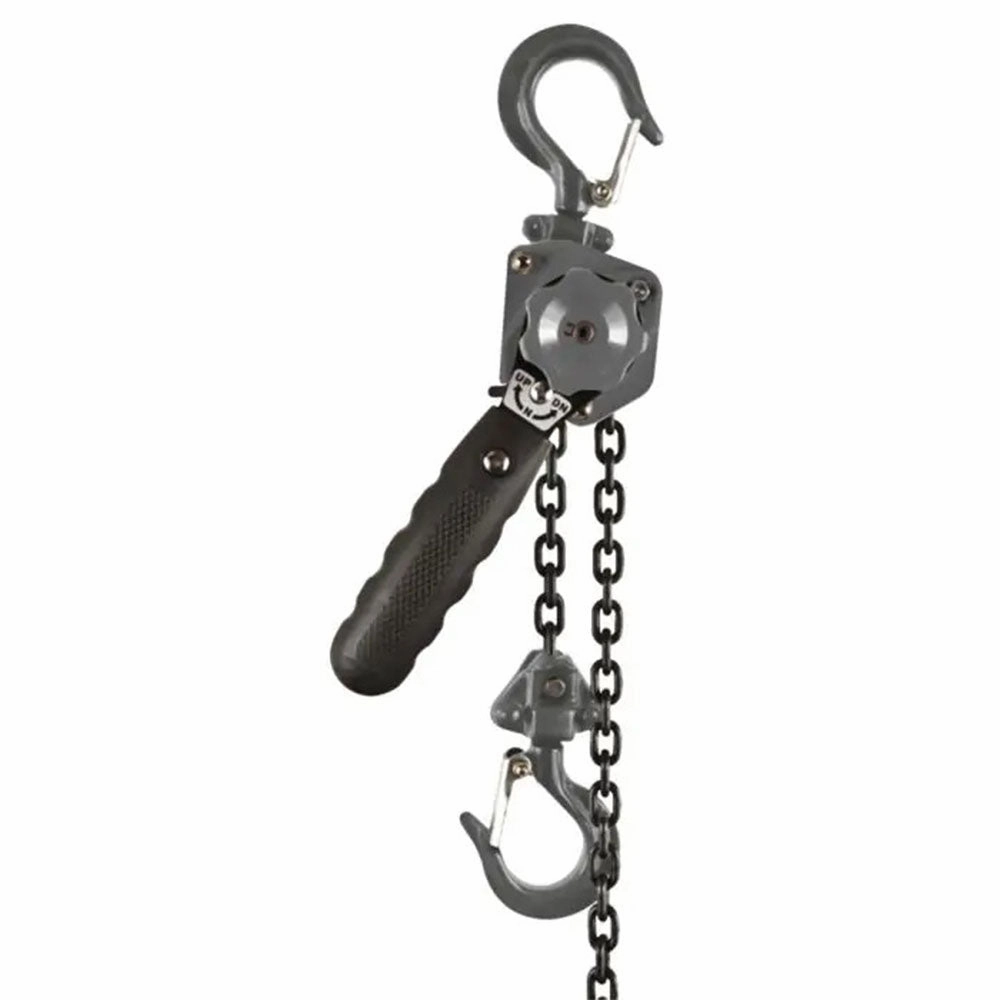

- JLP-A Series 1/2 Ton Mini-Puller, 15' Lift - 287202
- Owner's Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 287202 |
| Brand | Jet |
| Lift per Turn (In.) | 2-5/6 |
| Load Capacity (Tons) | 1/2 |
| Load Chain Dimensions (Mm.) | 4.3 x 12 |
| Lever Pull Force (LBF) | 86 |
| Lift (Ft.) | 15 |
| Headroom (In.) | 10 |
| Handle Length (In.) | 8-1/2 |
| Overload Protection | No |
| Hook Throat Opening (In.) | 1-3/8 |
| Overall Width (In.) | 3-3/4 |
| Weight (Lbs.) | 10 |
