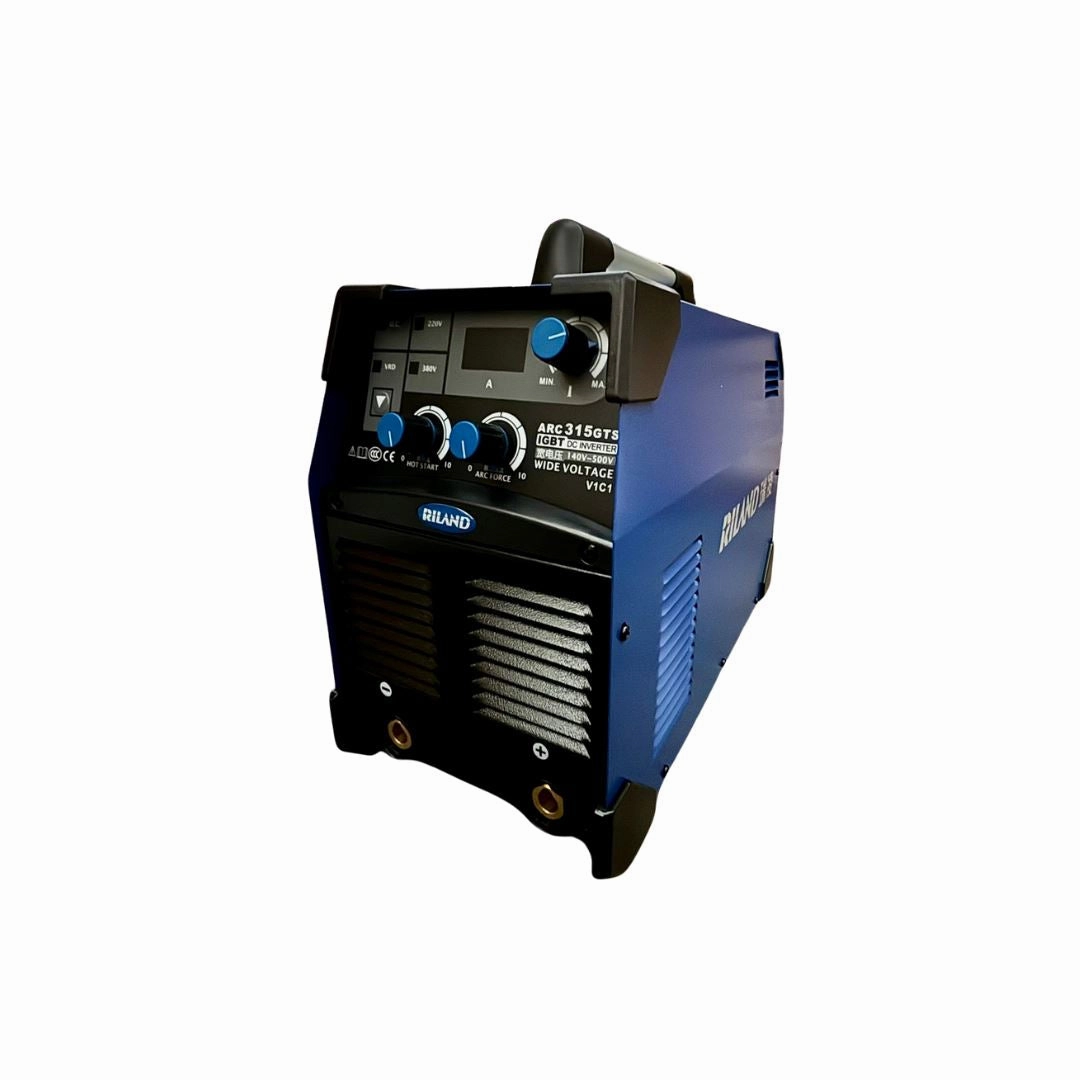

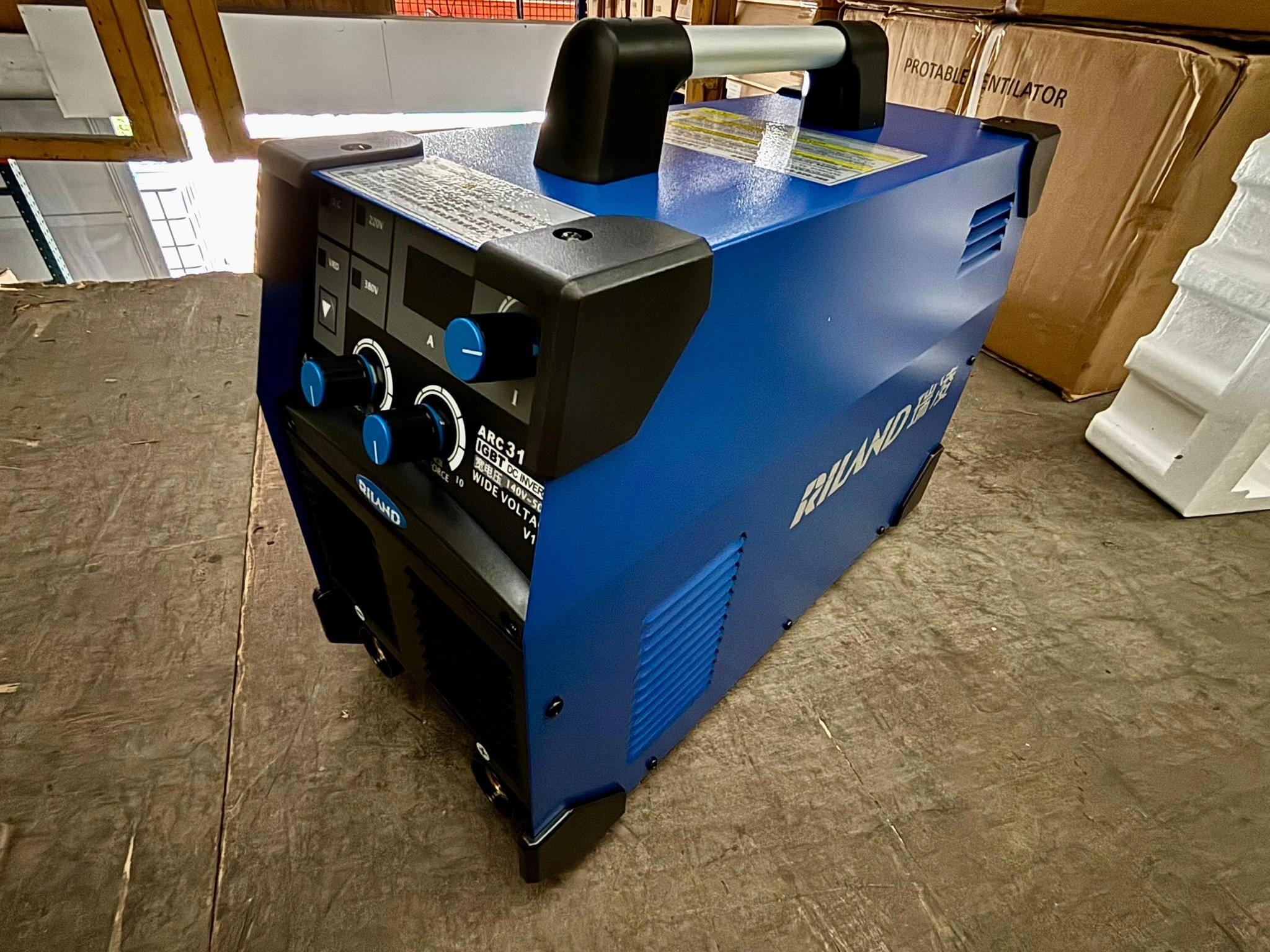

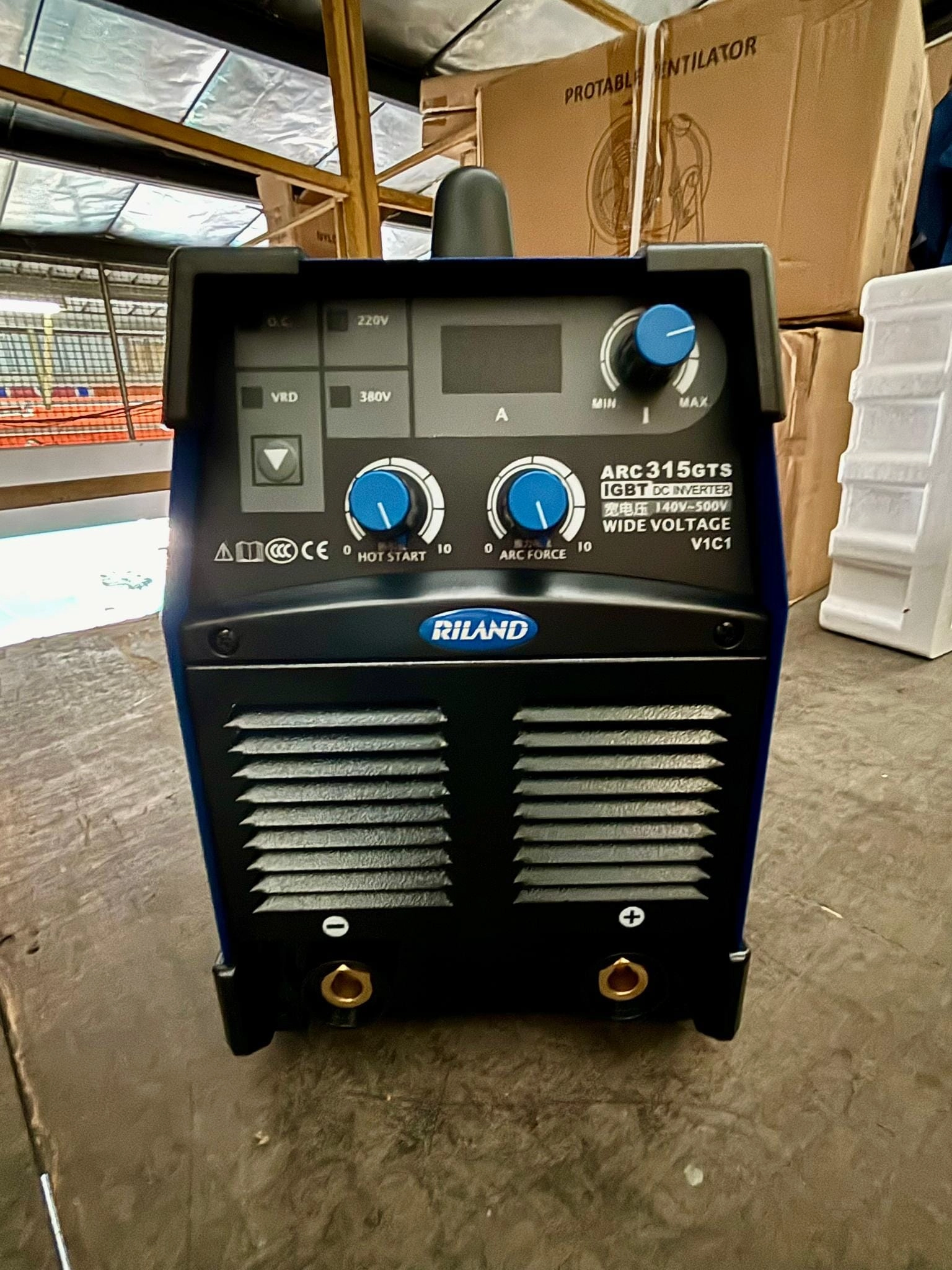

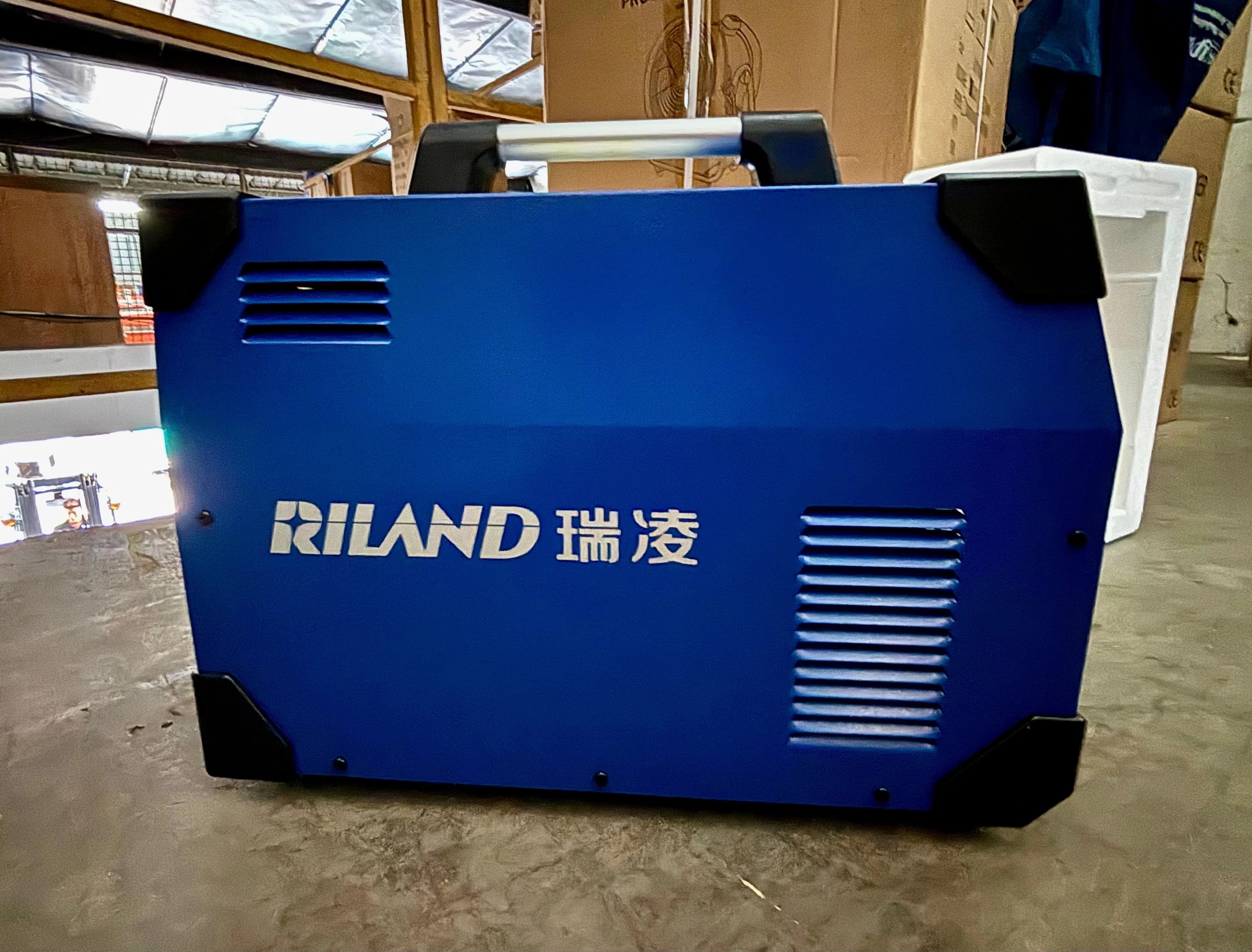

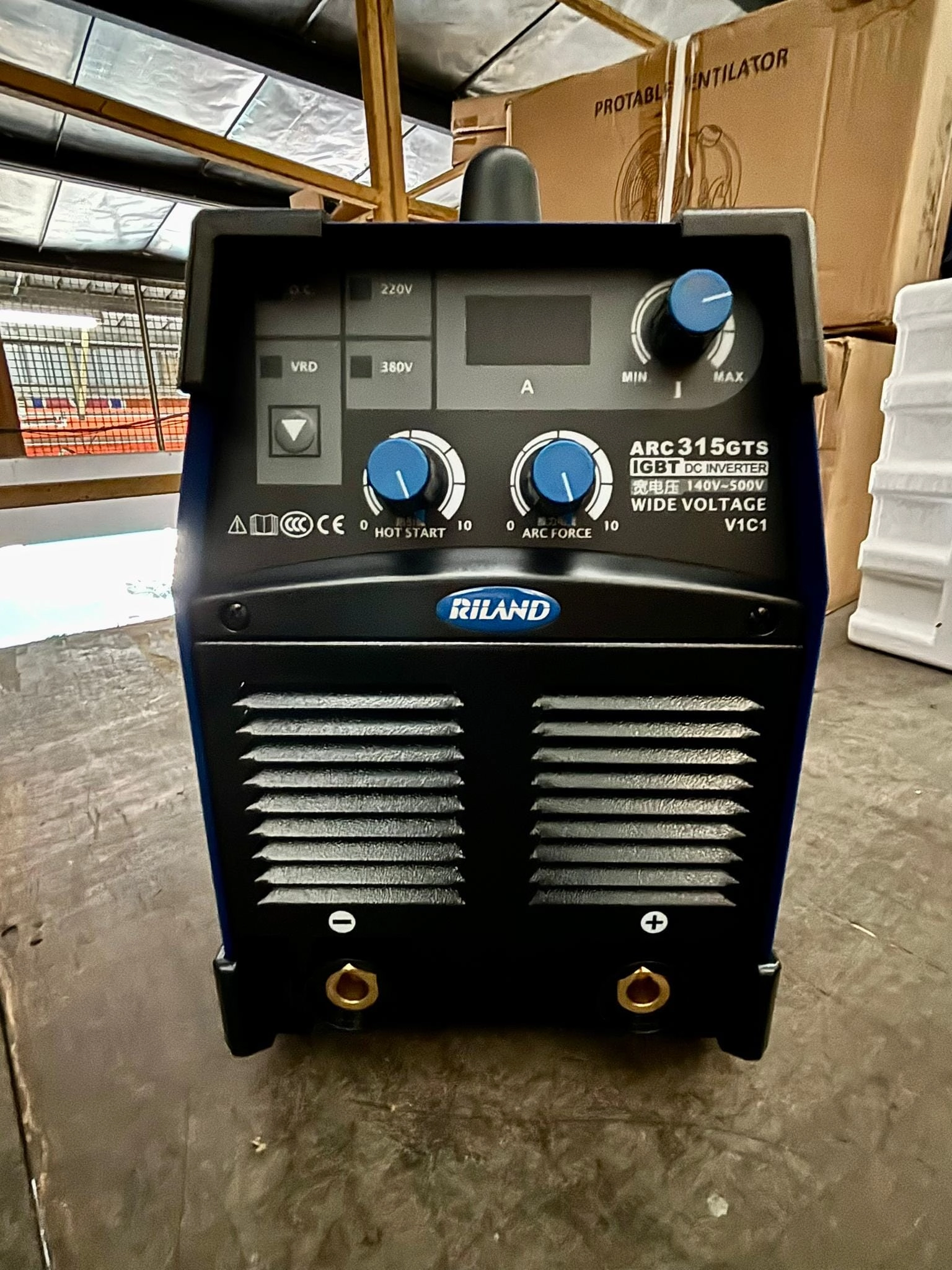

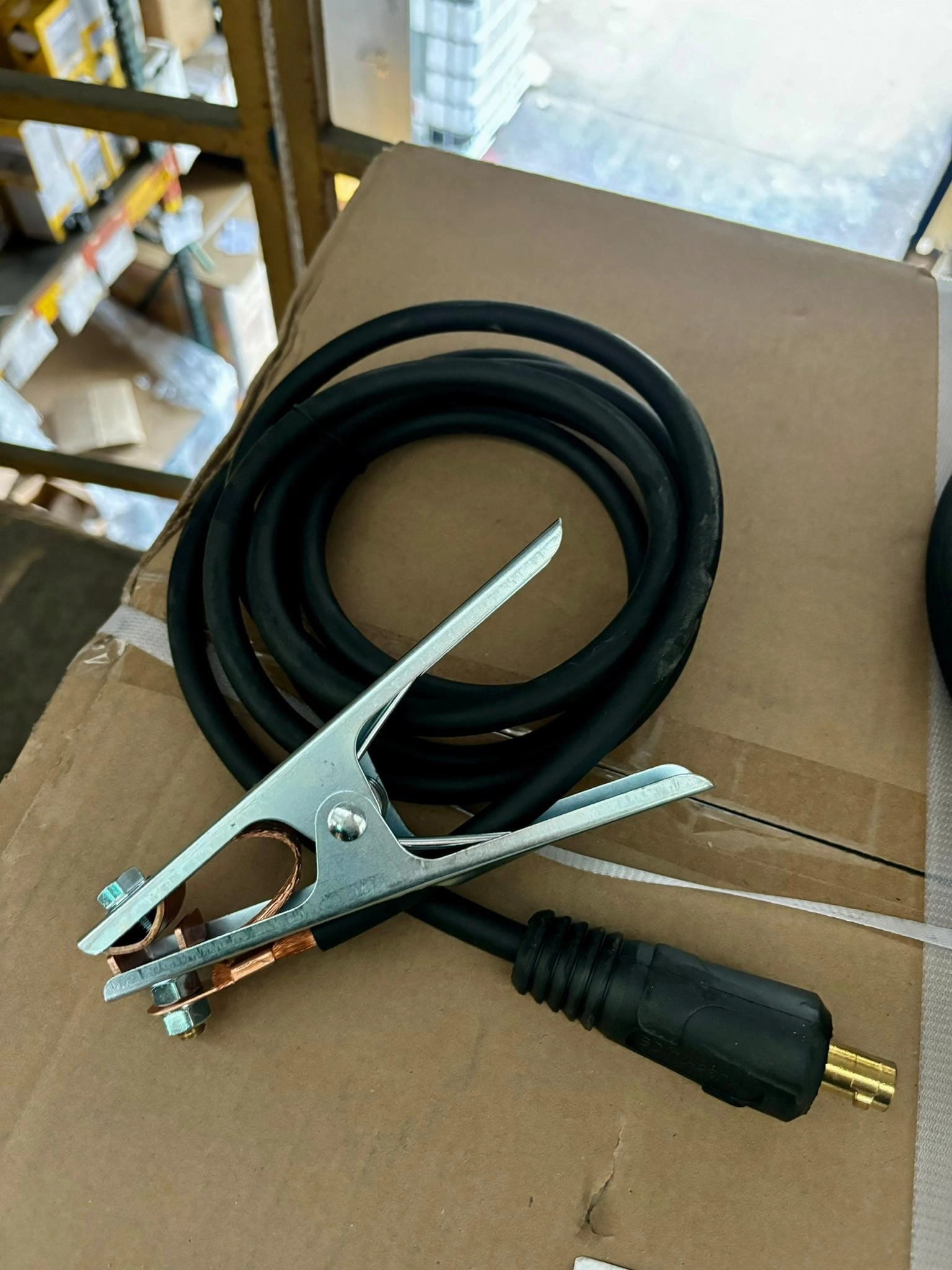

Aiko ARC315GTS (1P/220V,380V) Welder W/3M Welding Cable & 3M Ground Cable | Model : W-ARC315GTS-R

Specifications :

• Input Voltage :- 220V/380V /- 15%
• Frequency :- 50/60Hz
• Operating Current :- 30- 280A/380V,30- 210A/220V
• Duty Cycle :- 30% @ 210A/220V,30% @ 280A/380V
• Rated Input Current :- 39A@210A/220V,37A @ 280A/380V
• Power Factor :- 0.7
• Housing Protection Grade :- IP21
• Weight :- 15Kg

Features :

• Recommended 4.0mm and 5.0mm electrodes.
• Dual voltage automatic switching(220V/380V).
• Stable and reliable arc.
• High frequency inverter reducing weight and size.
• Arc-Force and Hot Start functions available.
• Self-adaptive Anti-Sticking.
• Easy arc starting, minimal spatter.
• VRD for welder safety.
• Suitable for acid electrode, basic electrode.

Applications :

• Chemical pipeline.
• Pressure vessel manufacture.
• Pipeline installation and maintenance.
• Fabrication in cast iron.
• Stainless steel welding works.
• Aluminum repair jobs.
• Bronze and brass repairs.
• Heavy Industrial use.
• DI Pipe welding.
• Welding of Galvanized iron.
• Building of Bus & Truck bodies.
• Maintenance and Installation requirements.
